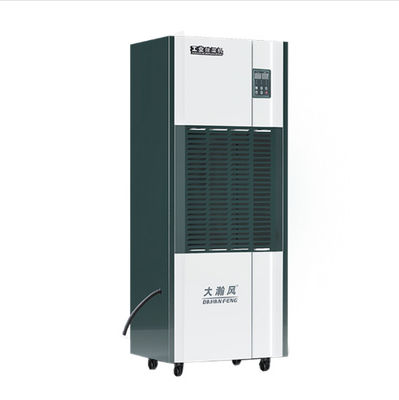

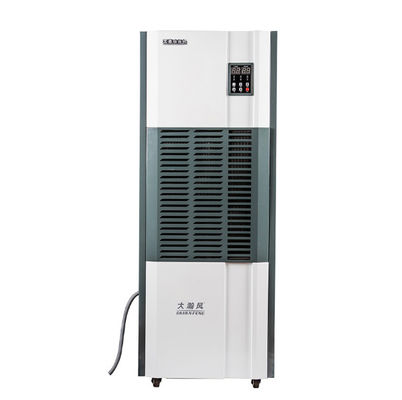

380 V/50 Hz Industrie-Trocknungsmittel-Entfeuchter mit 5,8 ~ 13 l/h Kapazität

380 V/50 Hz Industrie-Trocknungsmittel-Entfeuchter mit 5,8 ~ 13 l/h Kapazität

Markenbezeichnung: Dahanfeng
Modellnummer: DHF-D-10IH1
MOQ: 50 Stück
Preis: US$1550/pcs/Factory price
Zahlungsbedingungen: T/T, D/A, D/P, L/C
Versorgungsfähigkeit: 300 bis 500 Stück in 10 Werktagen
Einzelheiten
Herkunftsort:
Guangdong, China
Zertifizierung:
3C, CE, RoHs,IS09001,ISO14001,CEP
Nominale Feuchtigkeitsentfernung:
5.8 L/h (27°C ~ 60% RH)
Feuchtigkeitsentfernung:
10 L/h (30°C ~ 80% RH)
Maximale Feuchtigkeitsentfernung:
13 L/h (35°C ~ 90% RH)
Stromversorgung:
380 V ~ 3N/50 Hz
Nennleistung:
2850 W
Leistung bei hoher Temperatur:
3350 W
Maximale Eingangsleistung:
4100 W
Betriebstemperatur:
5°C bis 38°C
Geräusche:
≤ 68 dB
Maximaler Betriebsdruck auf der Abgasseite/Saugseite:
40,4/1,5 MPa
Maximaler Betriebsdruck auf der hochtemperaturschichtlichen Seite:
4.4 MPa
Maximal zulässiger Druck für den Wärmeaustausch:
4.4 MPa
Wasserbehälter:
Keine/Abflussrohr
Kühlmittel/Verwendung:
R410a/1750 g
Wasserdichte:
IP21
Art des Schutzes vor elektrischen Schlägen:
Klasse I
Durchflussluft:
1900 m3/h
Größe:
68*47,2*169,6 cm
Verpackung Informationen:
Ausgestopft
Hervorheben:

50 Hz-Industrialdesiccant-Entfeuchter

,

10 L/h Industrie-Trocknungsmittelentfeuchter

,

380 V industrieller Trocknungsmittelentfeuchter

Beschreibung des Produkts

Industrieentfeuchter mit innerer und äußerer Zirkulation für eine bessere Leistung



DieProzessvon Ausrüstungen mit zwei Teilen:
1)Innere Durchblutung
Compressor operation → exhaust discharge of high-temperature and high-pressure gas → gas into the condenser to cool → into a low-temperature and high-pressure gas → through the capillary interception → into a low-temperature and low-pressure liquid → through the evaporator evaporation and heat absorption → back to the compressor into a low-temperature and low-pressure gasAlso fahren Sie.





380 V/50 Hz Industrie-Trocknungsmittel-Entfeuchter mit 5,8 ~ 13 l/h Kapazität 0

380 V/50 Hz Industrie-Trocknungsmittel-Entfeuchter mit 5,8 ~ 13 l/h Kapazität 1

380 V/50 Hz Industrie-Trocknungsmittel-Entfeuchter mit 5,8 ~ 13 l/h Kapazität 2


2)Außenumschlag
In the case of normal power on → through the operation of the fan → humid air from the inlet inhalation → through the evaporator → evaporator will be the water in the air adsorption on the aluminium sheet → into dry air → through the condenser heat dissipation → from the outlet blowing out.

380 V/50 Hz Industrie-Trocknungsmittel-Entfeuchter mit 5,8 ~ 13 l/h Kapazität 3
